KL5LM Rechargeable Miner's Cap Lamp Miner Lamp With SOS Light 10000 Lux Underground Wired Mining Lamp 6.6Ah IP68
Product Description:
Introduction of KL5LM LED coal mine headlight
GL5--C corded miner cap lamp uses 1pcs LED as the main light, 2pcs SMD LEDS as the auxiliary lights, and is designed with a high capacity 6.6Ah rechargeable Li-ion battery. It has three levels of power Strong - Auxiliary - SOS! High power lasts for 16 hours.
These LED mining lamps use special materials instead of traditional lamps. It has strong brightness, long lighting time, long lifetime, high intensity, weight of 420g, low usage cost, and high security.
Features:
Features of USB Charging Miners Cap Lamp
1. High quality, strong brightness,10000 lux beam corded lamp.
2. One main and two auxiliary lights.
3. 6.6 Ah big Li-ion battery pack with just 420g.
4. Low power warning function for safety lighting.
5. Silicon button cap with good touch.
6. Humanized and Excellent design.
7. Explosive proof, flame-resistant,impact-resistant, IP 68 water-proof.
8. Battery (Lithium-ion) Every battery cycled lifetime is more than 1000 times. It's the newest environmental protection battery.
9. LED: it uses 1.67W high-power LED, Its life is more than 100000 hours
All the mining lamps come with a year warranty, we will keep free maintenance for you for one year
Technical Parameters:
| Model No. | GL5-C Miner cap lamp |
| Light source | one main light two auxiliary lights |
| Battery Capacity | 6.6Ah Li-ion battery pack |
| Rated Voltage | 3.7V |
| Main light current | 450mA |
| Power of main light | 1.67W |
| Illuminous | 216lum |
| Brightness | 10000lux |
| Life span of main light | 100000hrs |
| Battery cycles | 1000 cycles |
| Working time | 16hrs |
| Water-proof grade | IP68 |
| Weight | 420g |

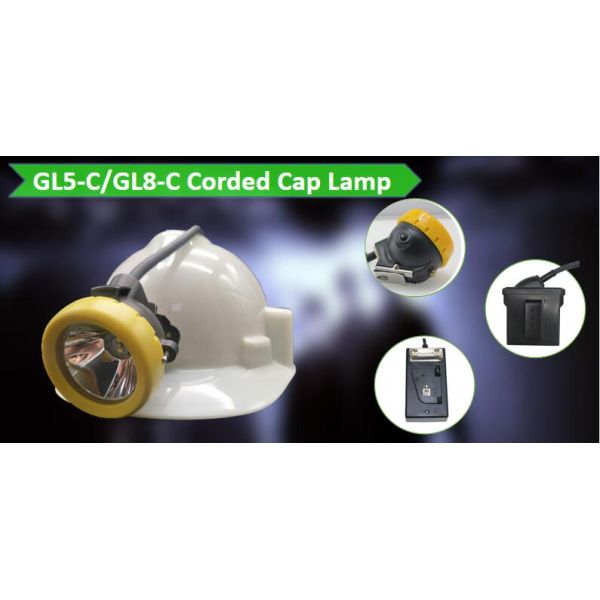

Product Image:
Coal Mining Lights, Mining Lights for Hard Hats, Cordless Cap Lamps Mining
Service:
Accept Customized as client's requirements:
Appearance
Strong ID Team, According to the client's market positioning, use conditions to design product shape, pattern and color.
Recently, customized the semi-corded, corded, and cordless with Tracking position and Infrared receiver
Electronic Circuit
Rich Experience in Software and Hardware Engineers, PCB Design and Layout. LED Driver, Charging circuit, Battery Protection Circuit, and so on. Write the request to cap lamps, such as client company name, LOGO, series No, and user name.
Structural Design
Professional MD Team, provides IP68 Waterproof, ATEX explosion-proof, Dust-proof Products, and 17 years of work experience in the underground field. Very familiar with miner's lamp industry products. MD team will field visit and according to the use condition design the waterproof.
Optical Design
According to LED Luminous Flux, the Light cup curve and current to design the Light Beam
